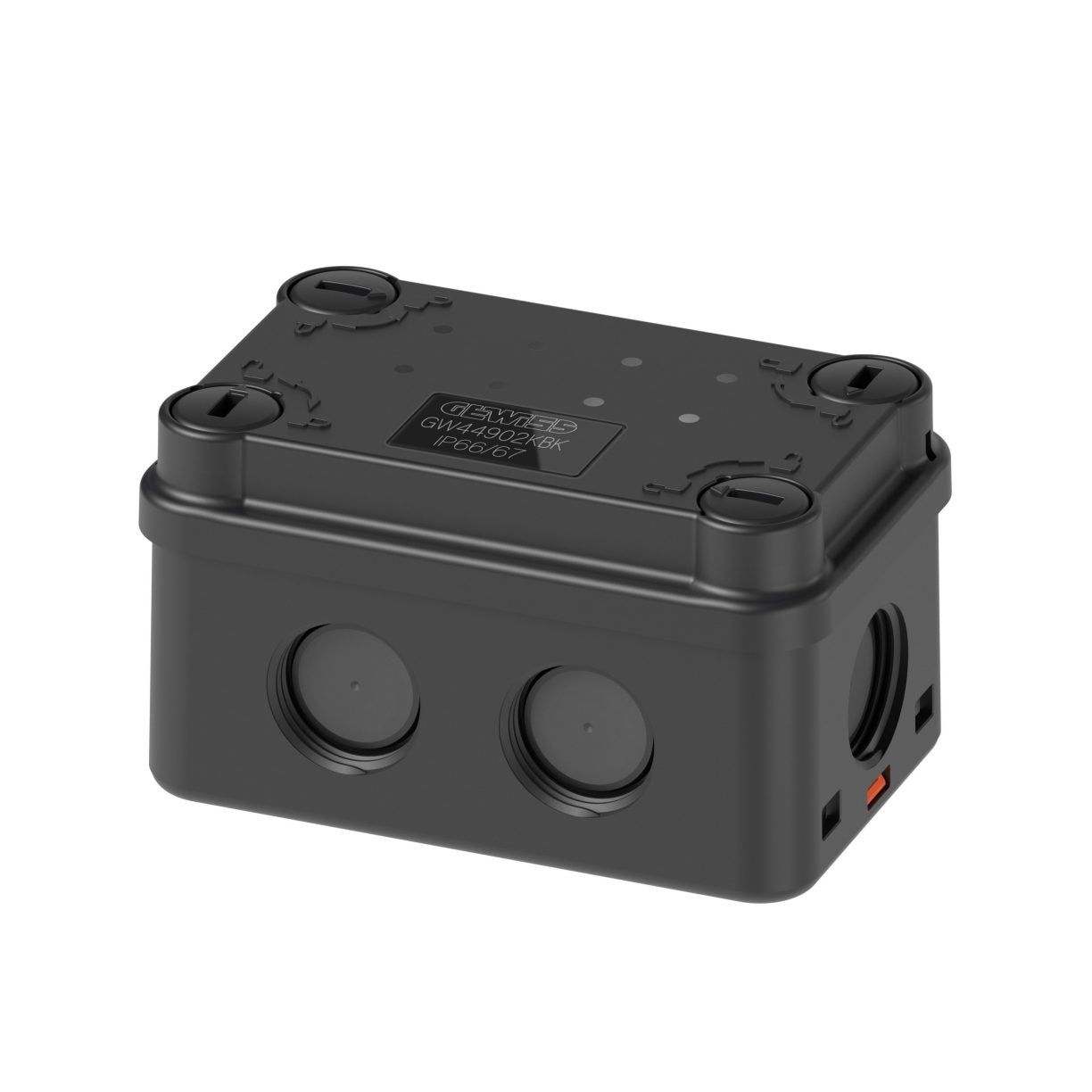

GEWISS GW44902KBK 44 CE APTA IP66/IP67 Junction Box 81x49x46mm Black

The GEWISS GW44902KBK 44 CE APTA IP66/IP67 Junction Box 81x49x46mm Black is a durable surface-mounted enclosure for protected cable joints and electrical connections. Part of the GEWISS 44 CE APTA range, it provides IP66 protection when the integral membrane entries are used and IP67 protection when fitted with suitable cable glands. The box has internal dimensions of 81x49x46mm and is finished in black RAL 9005. Four captive, sealable quarter-turn lid screws provide quick access while helping prevent lost fixings during installation and maintenance. The technopolymer construction is UV resistant and halogen free, making the enclosure suitable for demanding indoor or outdoor domestic, commercial and light-industrial applications. Threaded membrane entries simplify cable access, while the supplied fixing bracket offers additional mounting flexibility. The operating range is -25°C to +60°C, and the enclosure is Class II insulated with a rated operational voltage of 750V AC. Use GEWISS code GW44902KBK to confirm the correct size and colour when ordering.

Key Features

• IP66 with membrane entries and IP67 with suitable cable glands
• Internal dimensions: 81x49x46mm
• Colour: Black RAL 9005
• Four captive, sealable quarter-turn lid screws
• UV-resistant and halogen-free enclosure construction
• Threaded membrane cable entries
• Fixing bracket included

Technical Specification

• Brand: GEWISS
• Product code: GW44902KBK
• Range: 44 CE APTA
• Application: ordinary junctions
• Internal dimensions: 81x49x46mm
• Colour: Black RAL 9005
• Ingress protection: IP66 with membrane / IP67 with cable gland
• Cable entries: 6 x M20
• Lid: low, captive
• Operating temperature: -25°C to +60°C
• Insulation class: Class II
• Rated operational voltage: 750V AC
